do88 Intercooler Toyota GR Yaris

Product detailed description

Advantages of the powerful do88 intercooler:

- Larger core volume: 13,971cc vs. 7,320cc, 91% bigger!
- Larger active cooling area, 2451 cm2 vs. 913 cm2, 168% larger!
- Larger input/output connection: 63mm (2 1/2”) versus 45mm (1 3/4”), 95% more area!
- Air flow at 0.175 bar/2.54 psi pressure drop: 300 CFM (226 CFM), 33% higher!
- Peak power of 26 Whp along with the input of the do88 turbo! Measured on a car with a TTE400 turbo, Syvecs ECU, etc.
- Lower air temperature behind the intercooler under the same conditions: 25°C (50°C), 25°C lower!

Suitable for Toyota GR Yaris cars manufactured from 2020.

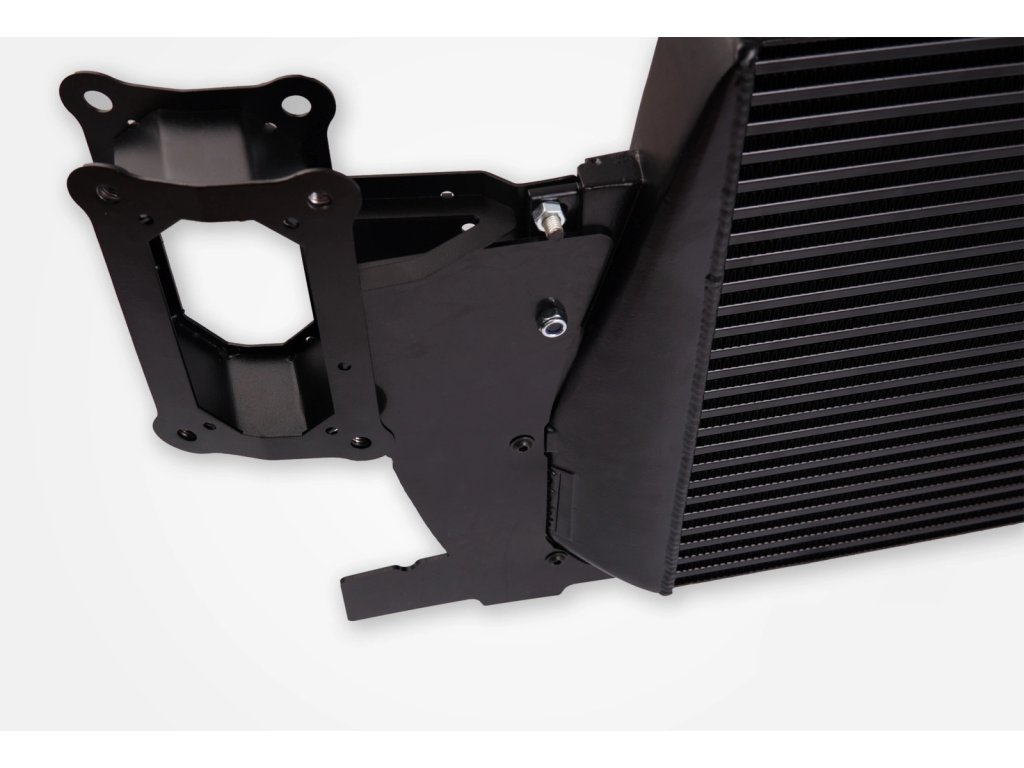

This intercooler is designed to provide the best cooling efficiency in demanding conditions. The larger front cooling area greatly improves cooling throughout the rev range along with properly designed core and end tanks. A low / thick intercooler will usually only offer better cooling at high speeds (high air velocity is required to force cooling air through the thick core).  In order to increase the front cooling area of ??the intercooler, it is necessary to move the bumper beam forward, otherwise the intercooler will not fit behind it. That's why there are two special spacers that move the bumper beam forward, these spacers also became the optimal position to use as attachment points for our intercooler.
